Medical Gas Outlets, Manifolds and Regulators for Operatory Gas Supply
Dental operatories that deliver oxygen and nitrous oxide need a keyed gas supply from the cylinder or manifold to the outlet at the chair. This category groups the outlets, manifolds, regulators, flowmeters and fittings that build and service that supply, stocked with the pin-index and DISS safety connections keyed to each gas.
Gas Supply Component Types Stocked

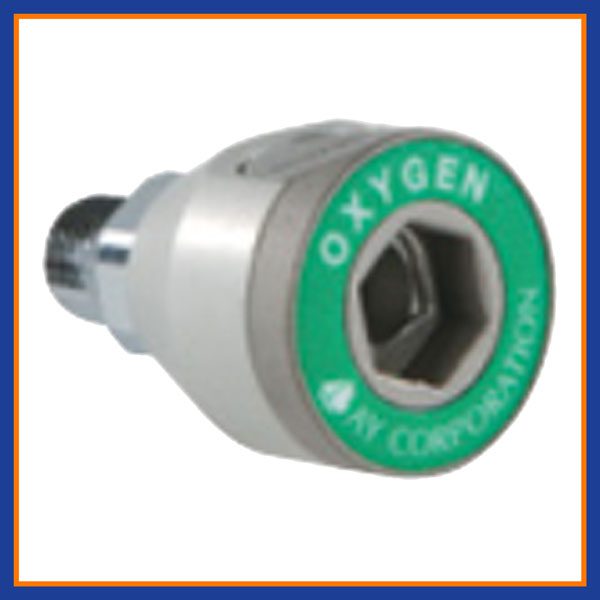

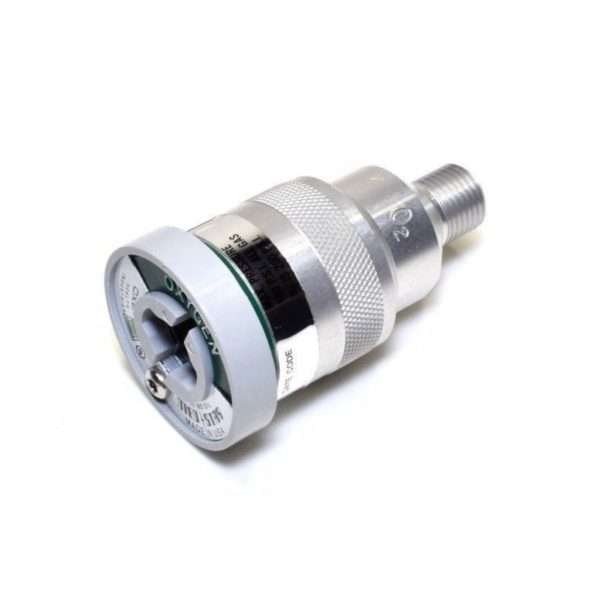

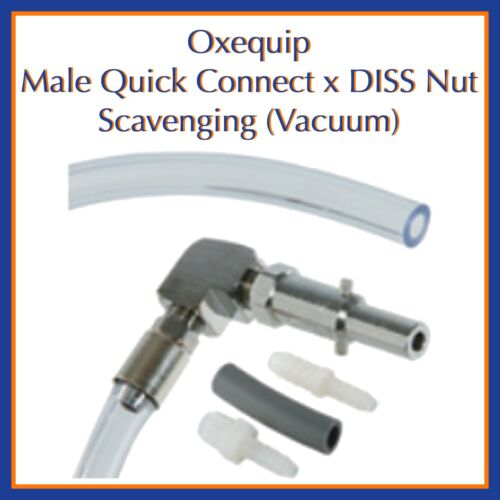

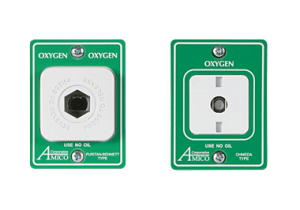

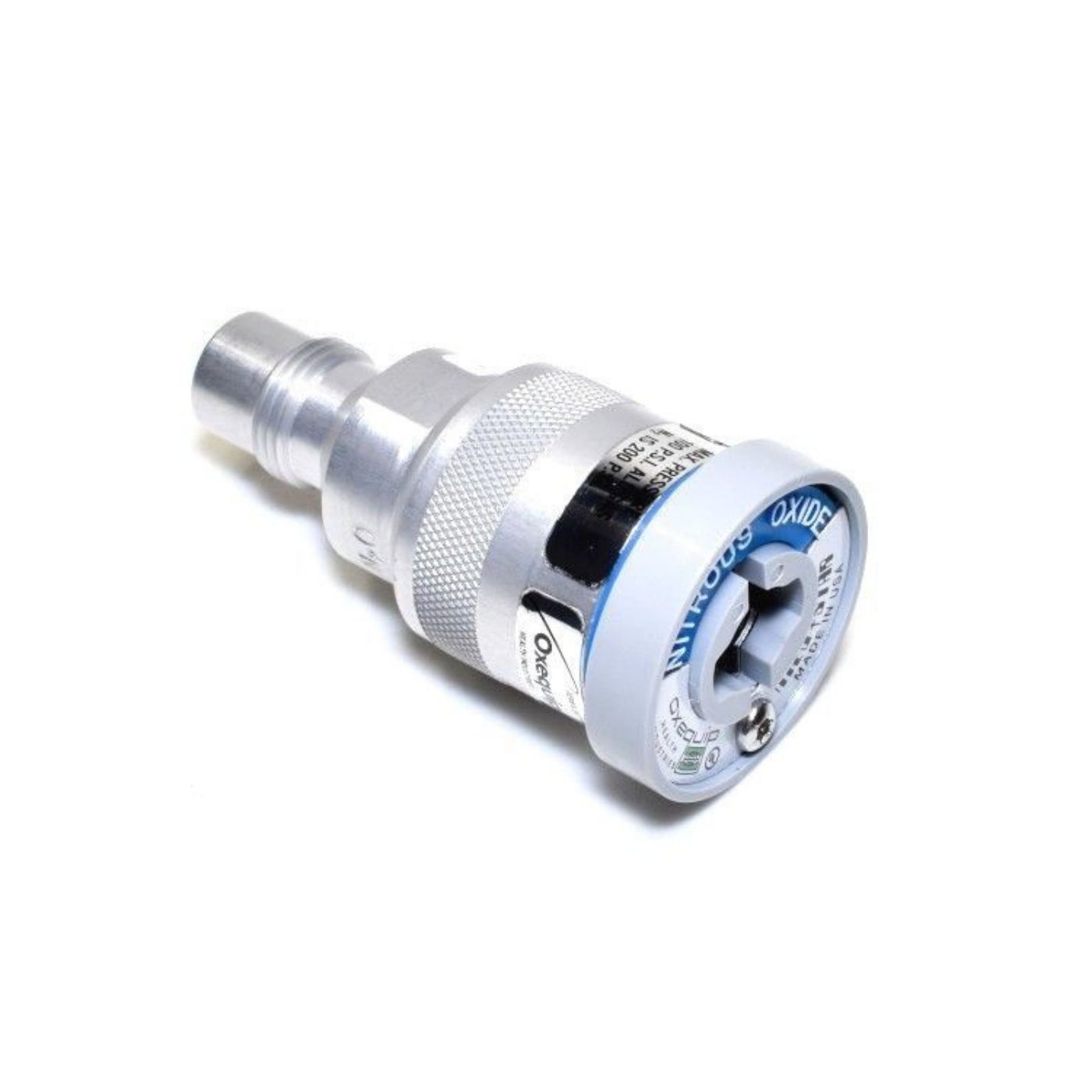

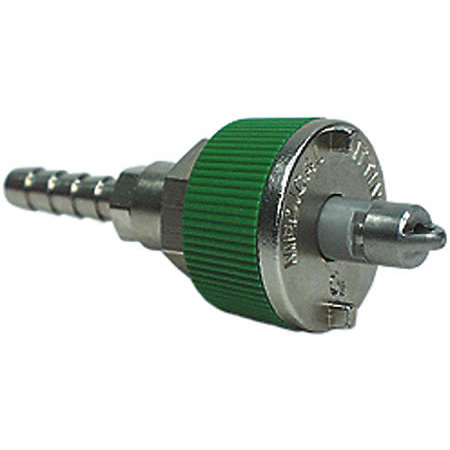

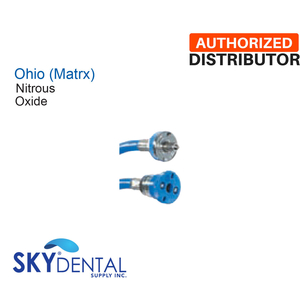

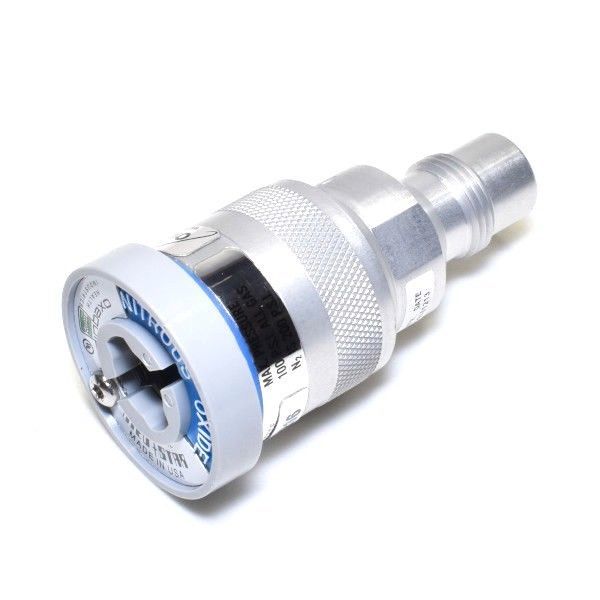

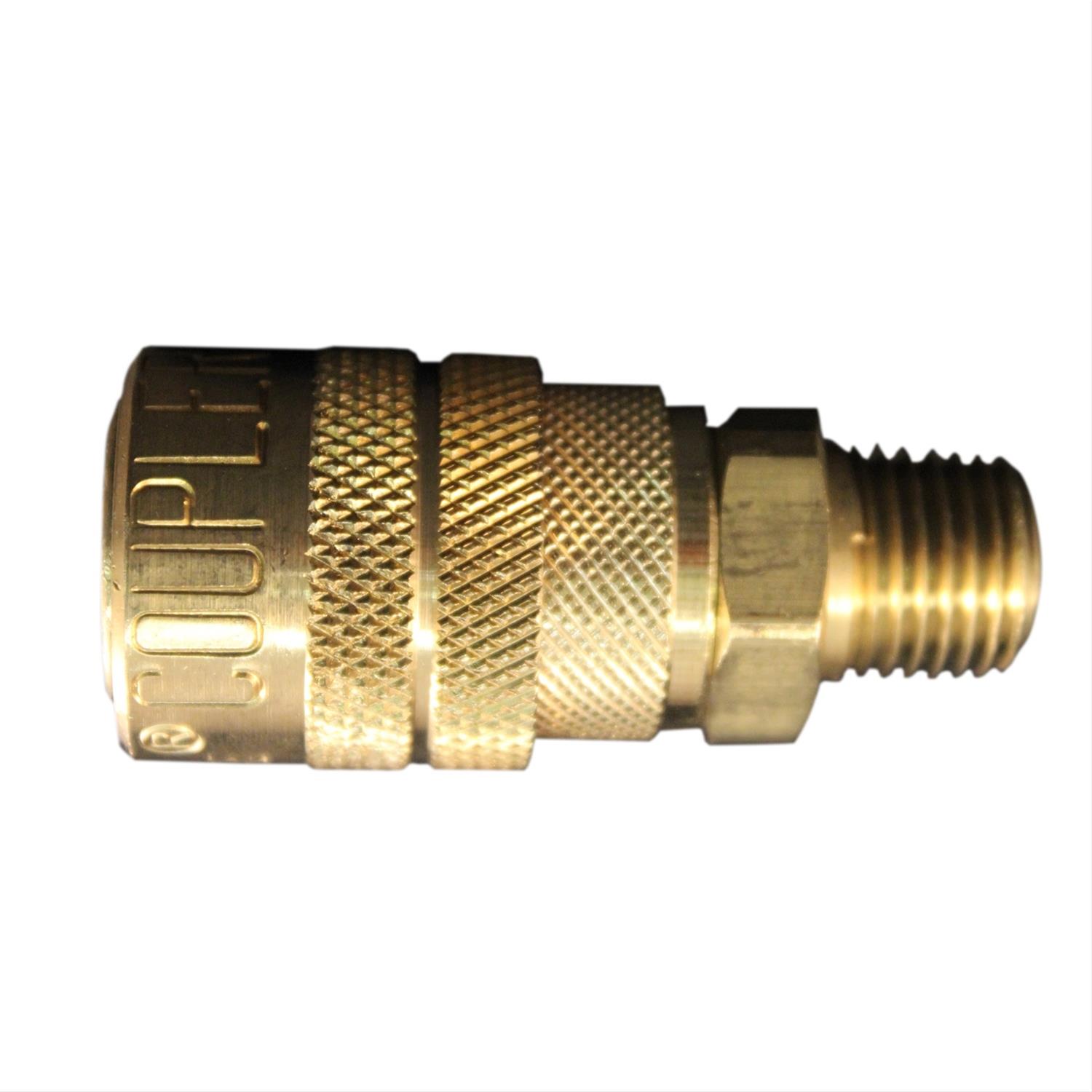

- Gas outlets and quick-connects - Wall, ceiling and mobile outlets and quick-connect couplers for oxygen and nitrous oxide, keyed to each gas service to prevent cross-connection.
- Cylinder and changeover manifolds - Single and dual-cylinder manifolds and automatic changeover manifolds that keep gas supply continuous as cylinders are switched.

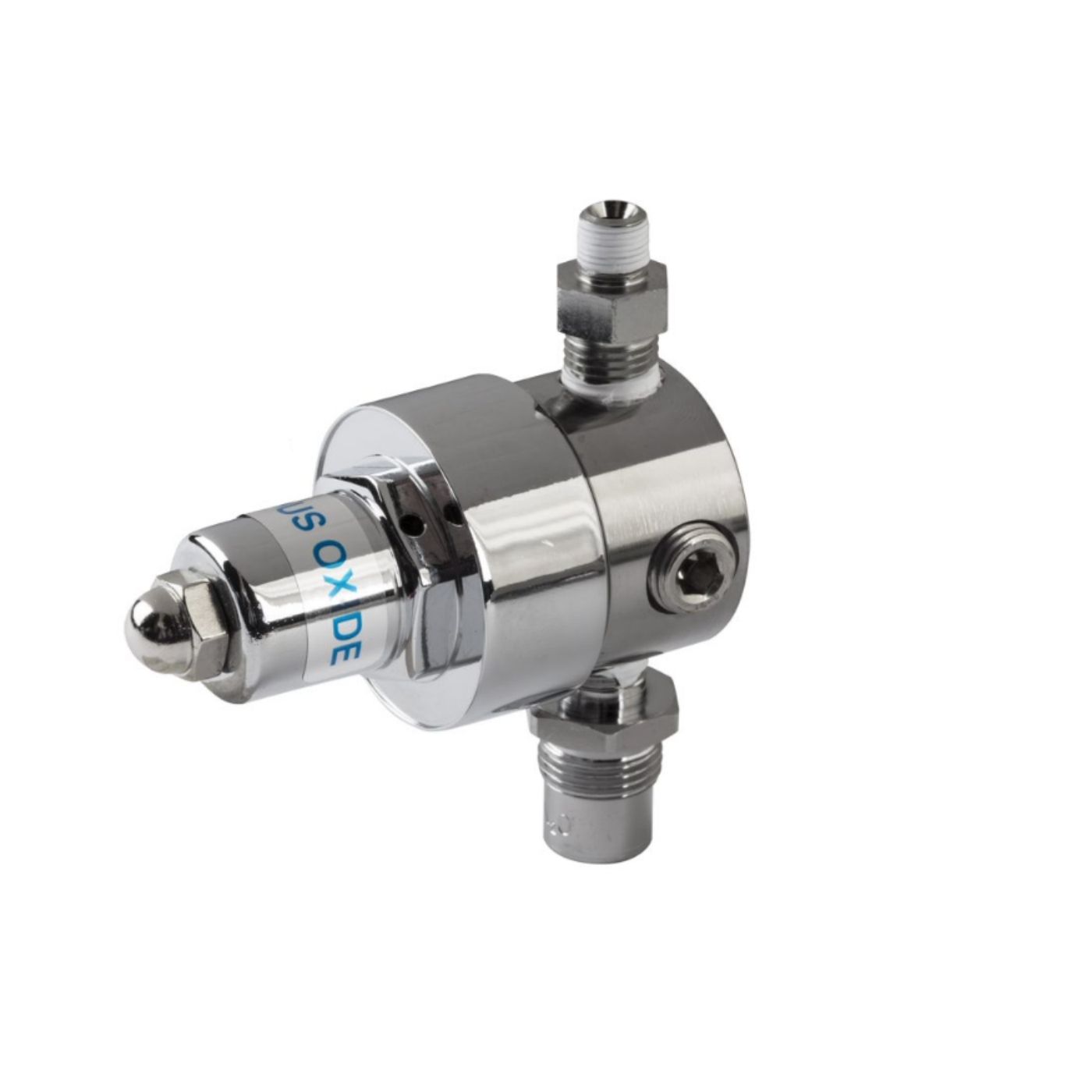

- Pressure regulators - Single and two-stage cylinder and line regulators that step high cylinder pressure down to working pressure, with pin-index yokes for small cylinders.

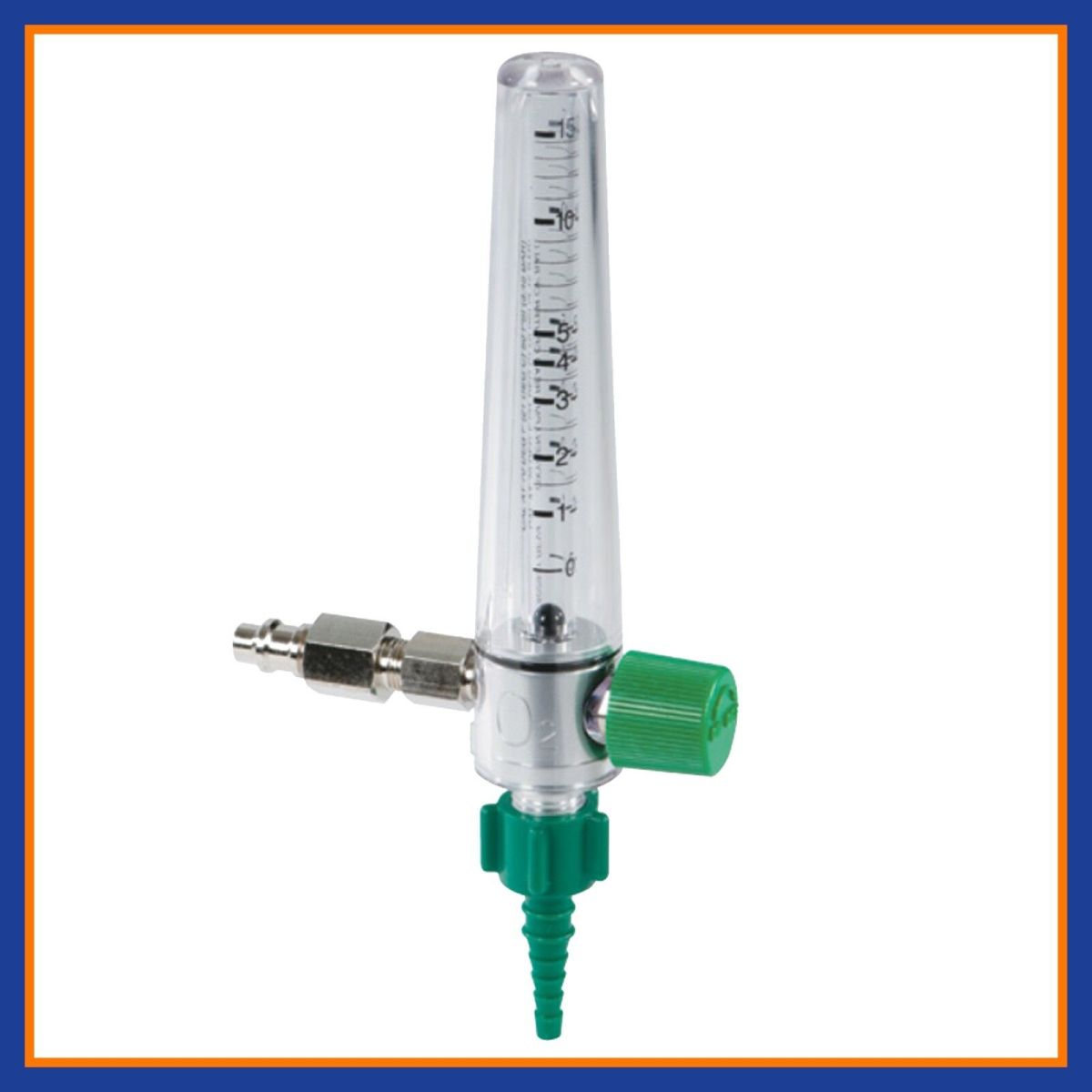

- Flowmeters - Oxygen and nitrous flowmeters, wall and cylinder-mounted, for setting delivered gas flow.

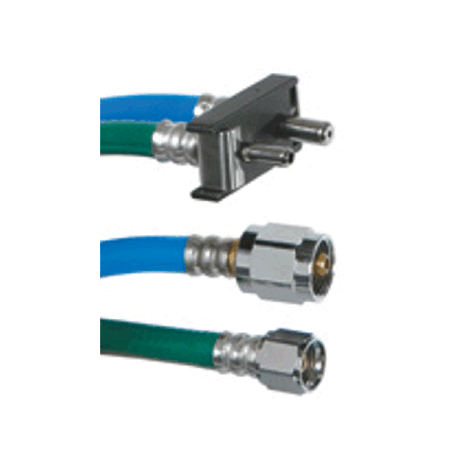

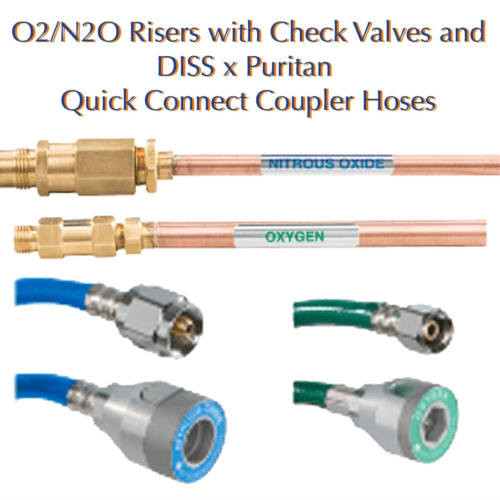

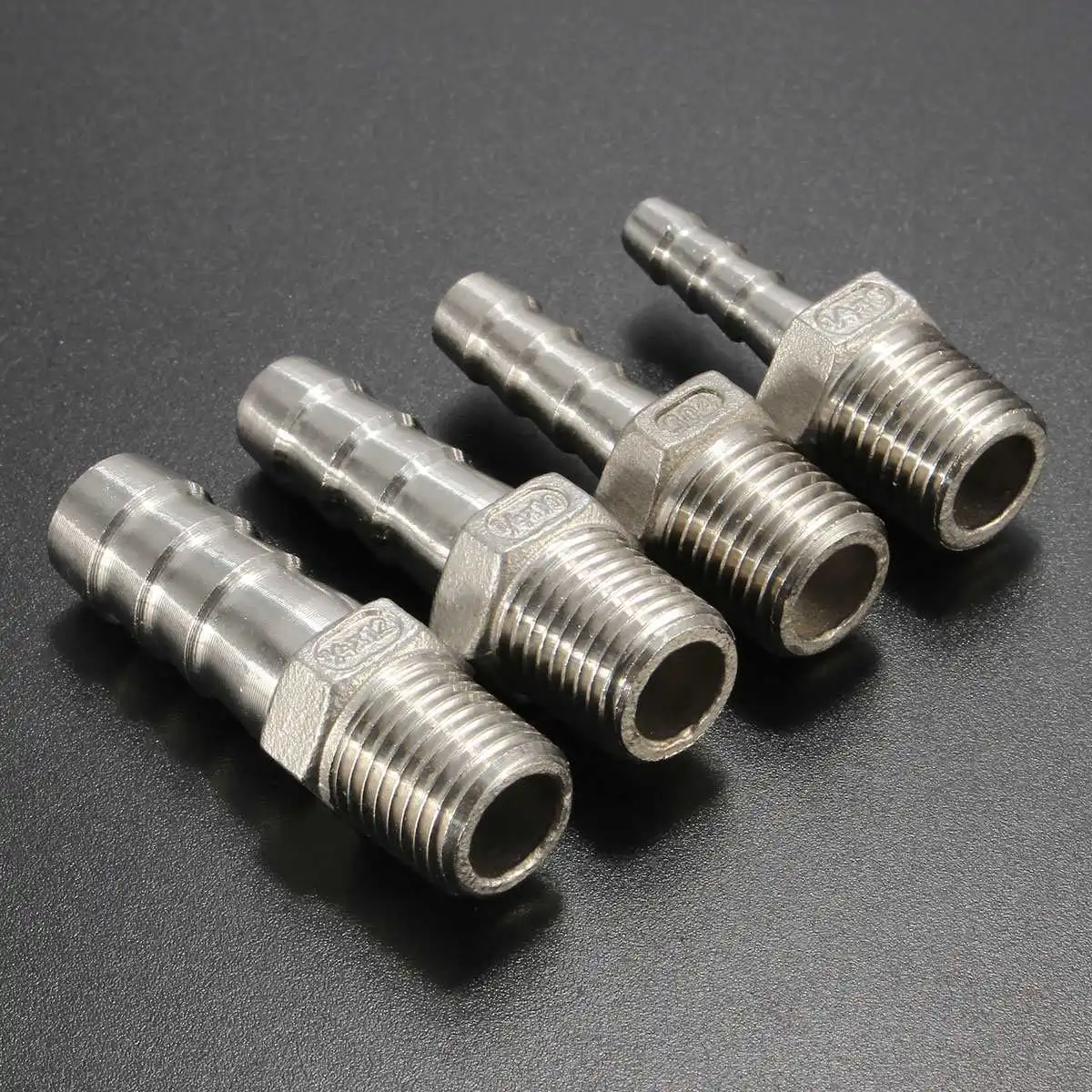

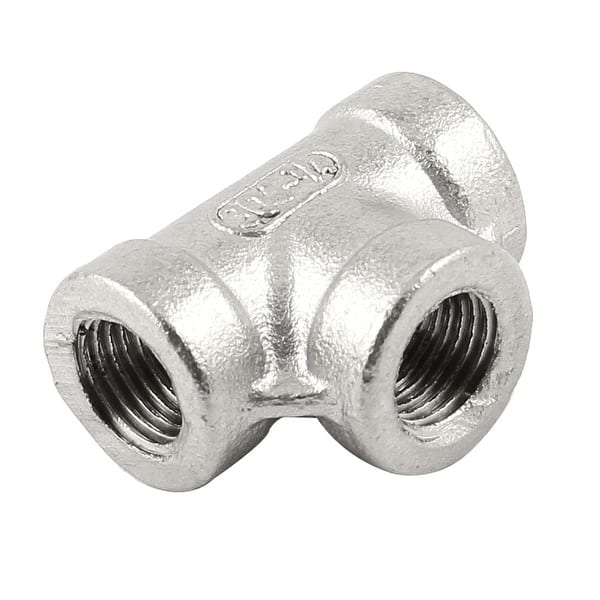

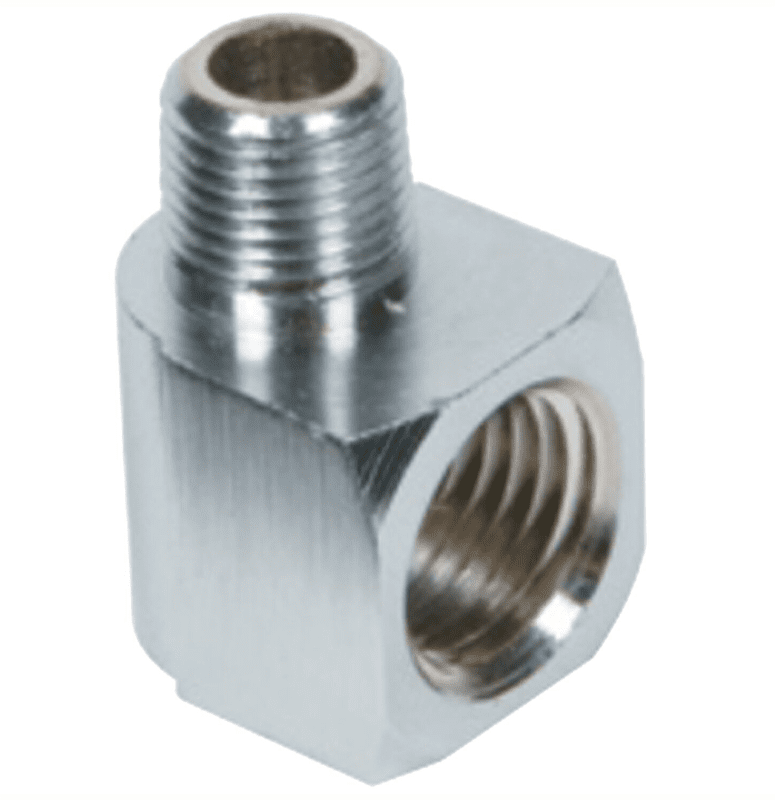

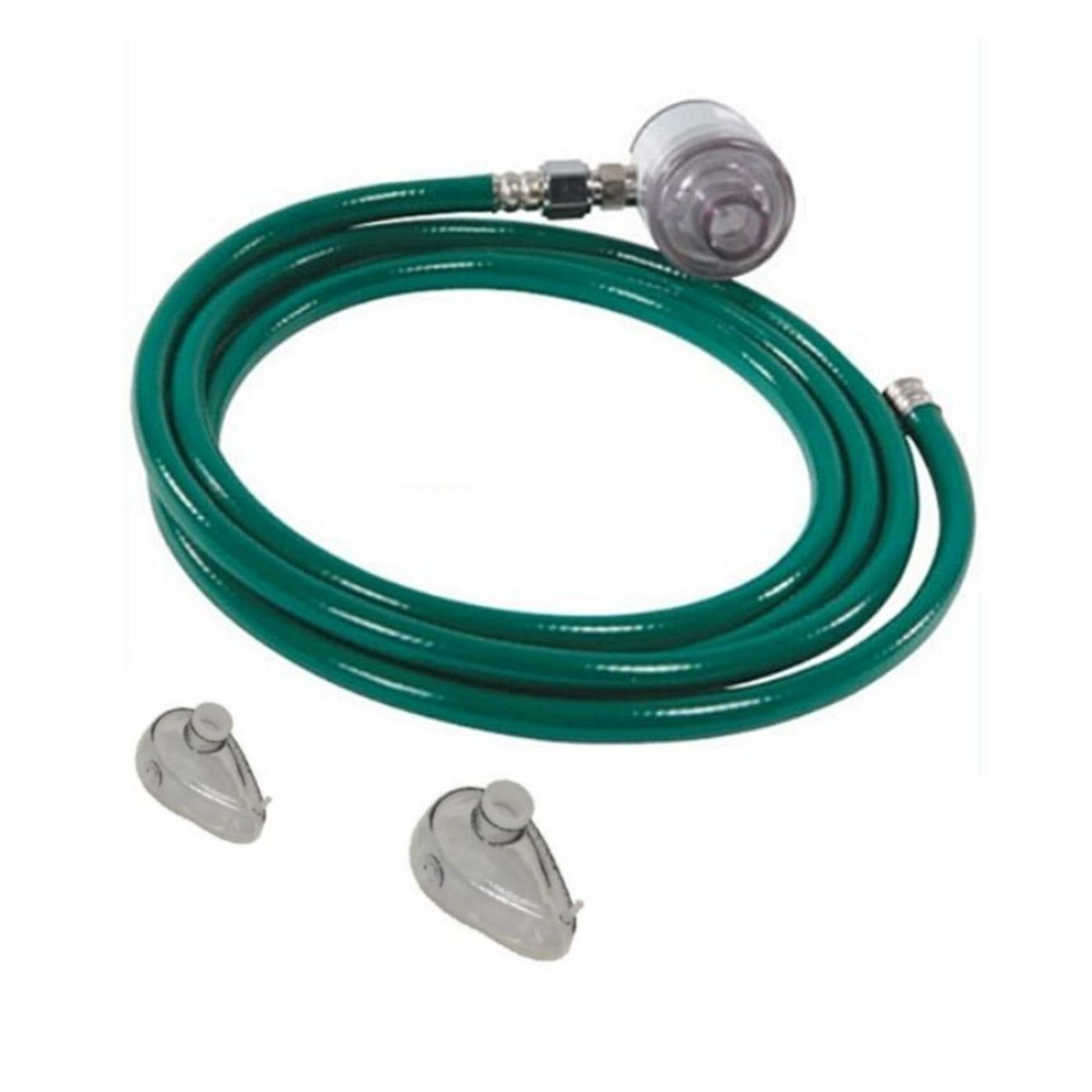

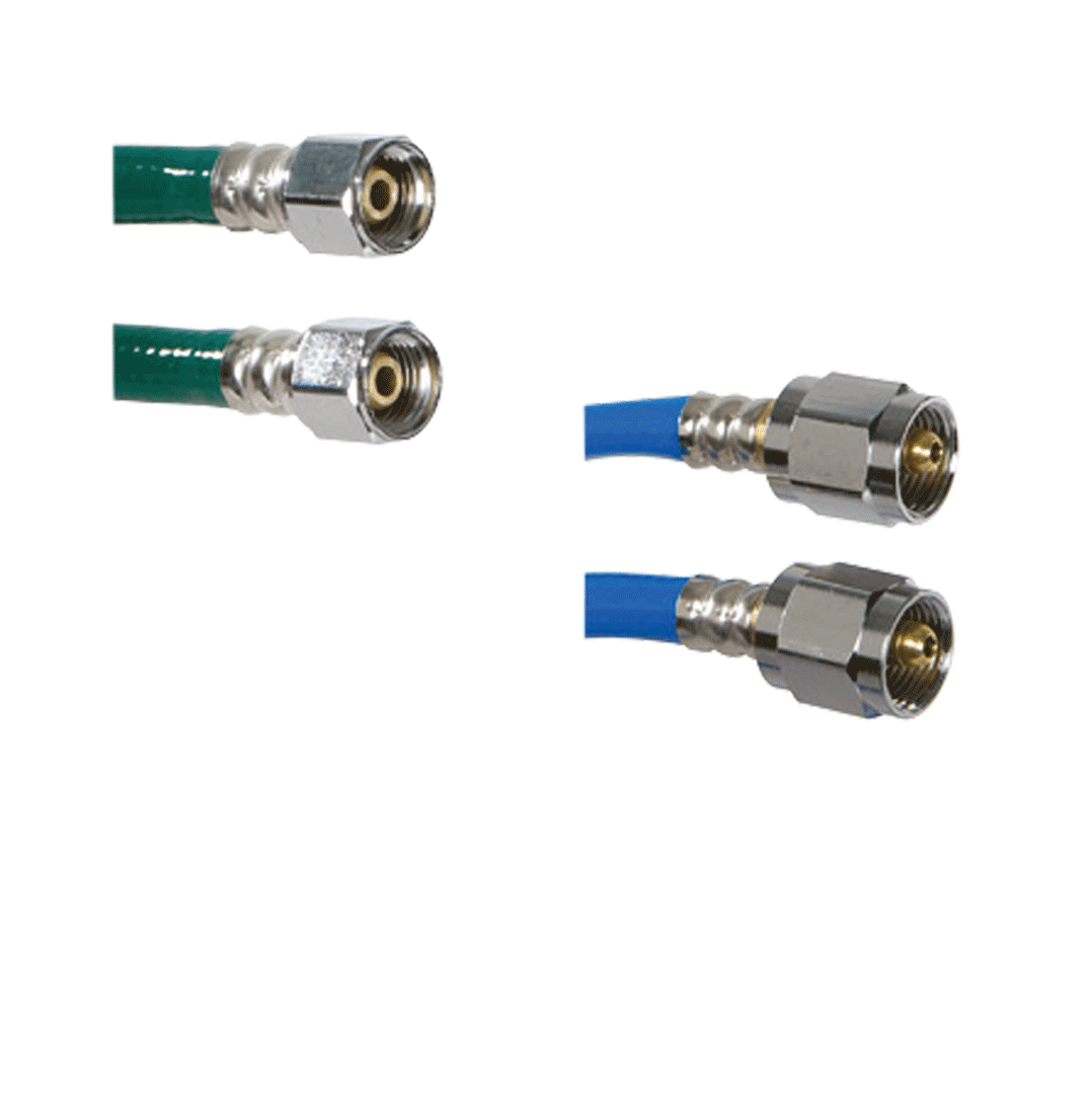

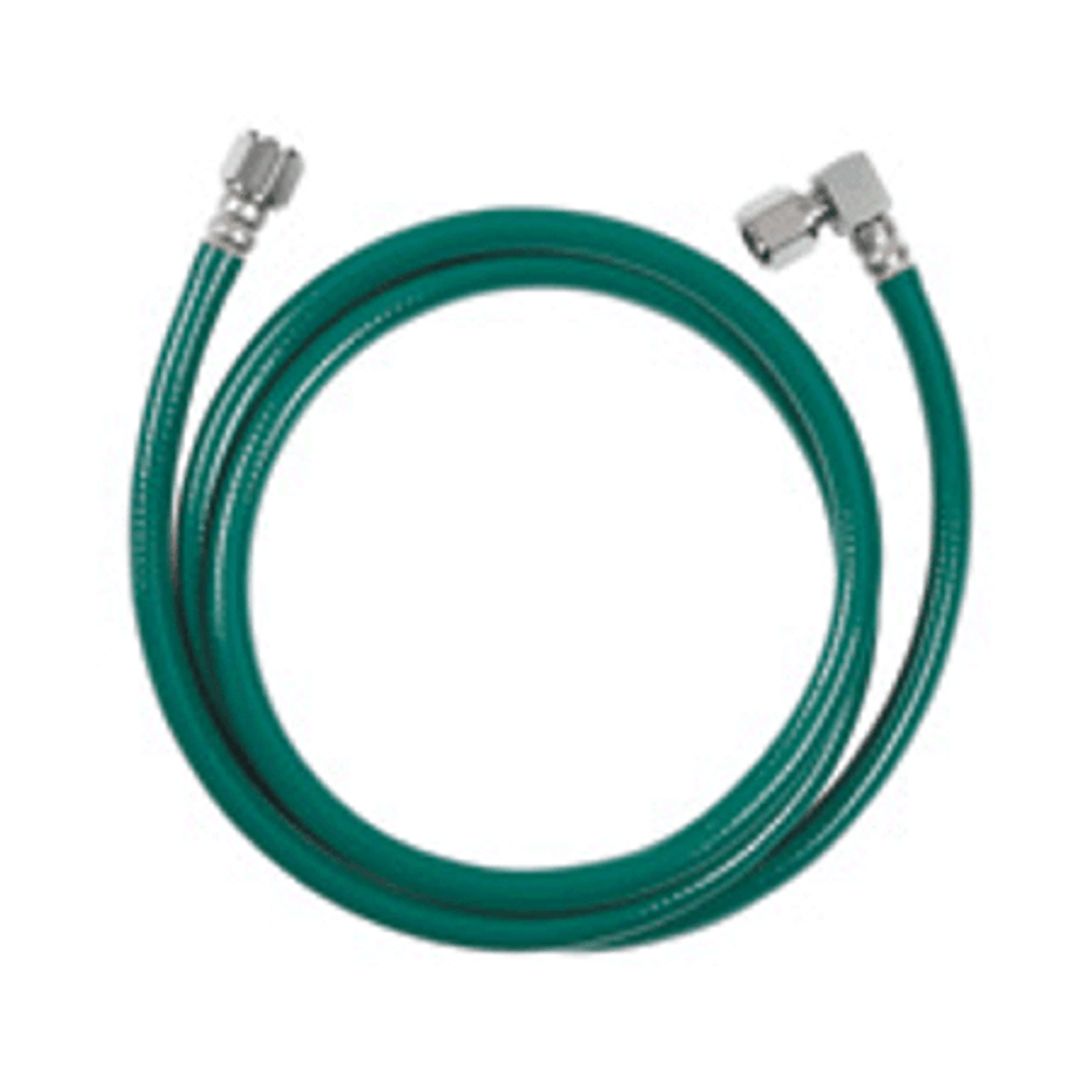

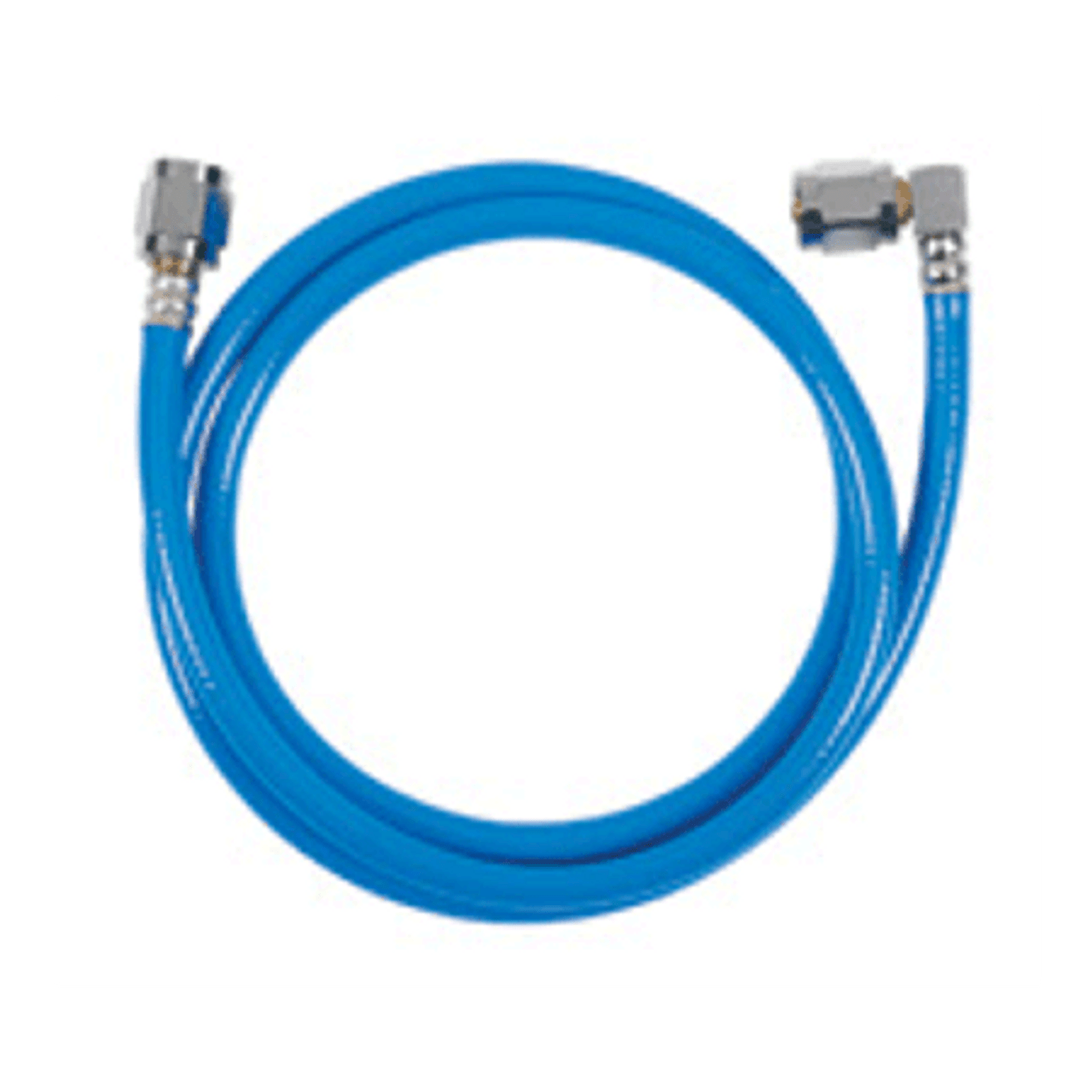

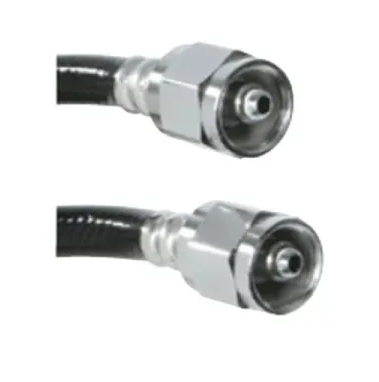

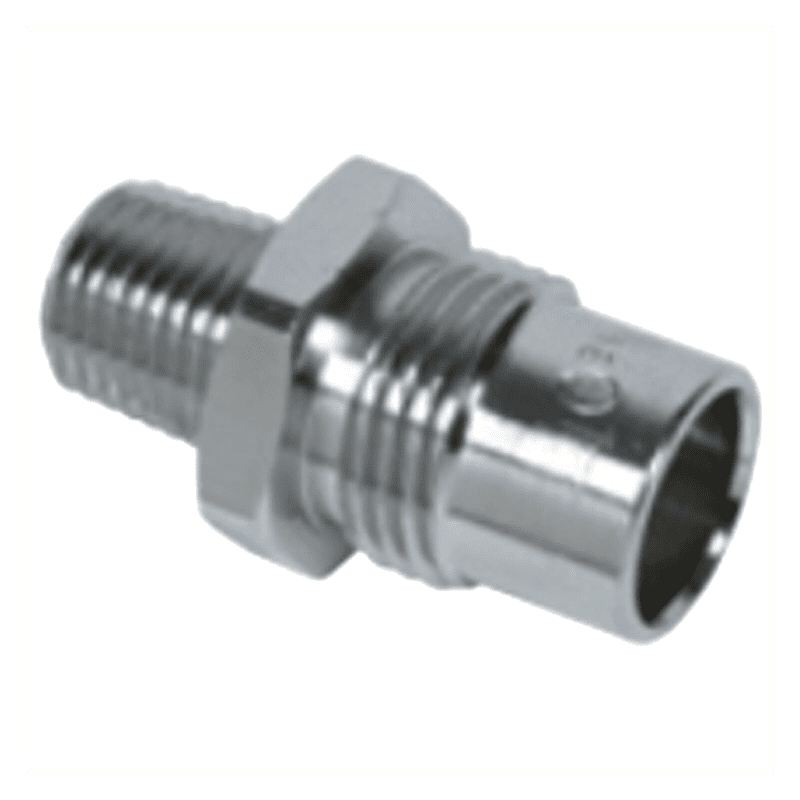

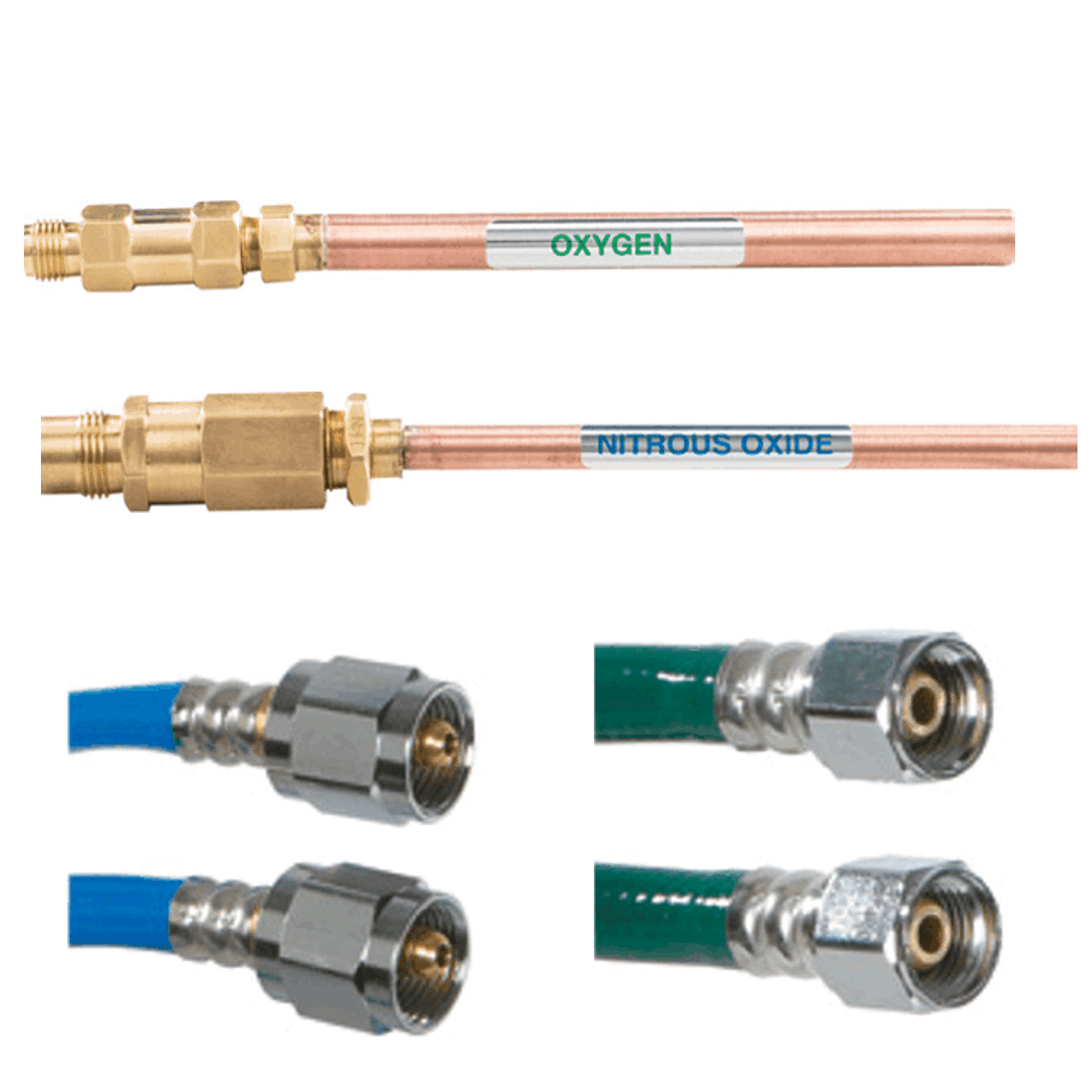

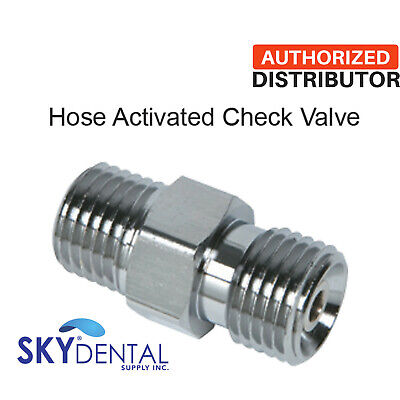

- Fittings, hoses and adapters - DISS fittings, pin-index adapters, cylinder wrenches, gas hoses and washers for connecting and servicing the gas supply.
Gas Supply Components and Connections
| Component | Function | Connection Type | Representative Brands |
|---|---|---|---|
| Gas outlet / quick-connect | Delivery point at chair | Gas-keyed quick-connect | Amico, Belmed |
| Changeover manifold | Continuous cylinder supply | DISS / pin-index | Amico, Tri-Tech |
| Pressure regulator | Steps pressure down | Pin-index yoke / DISS | Western, Precision Medical |
| Flowmeter | Sets delivered flow | DISS | Porter, Precision Medical |
| Fittings and hoses | Connection and service | DISS / pin-index | Generic, OEM |
Pin-Index and DISS Safety Connections

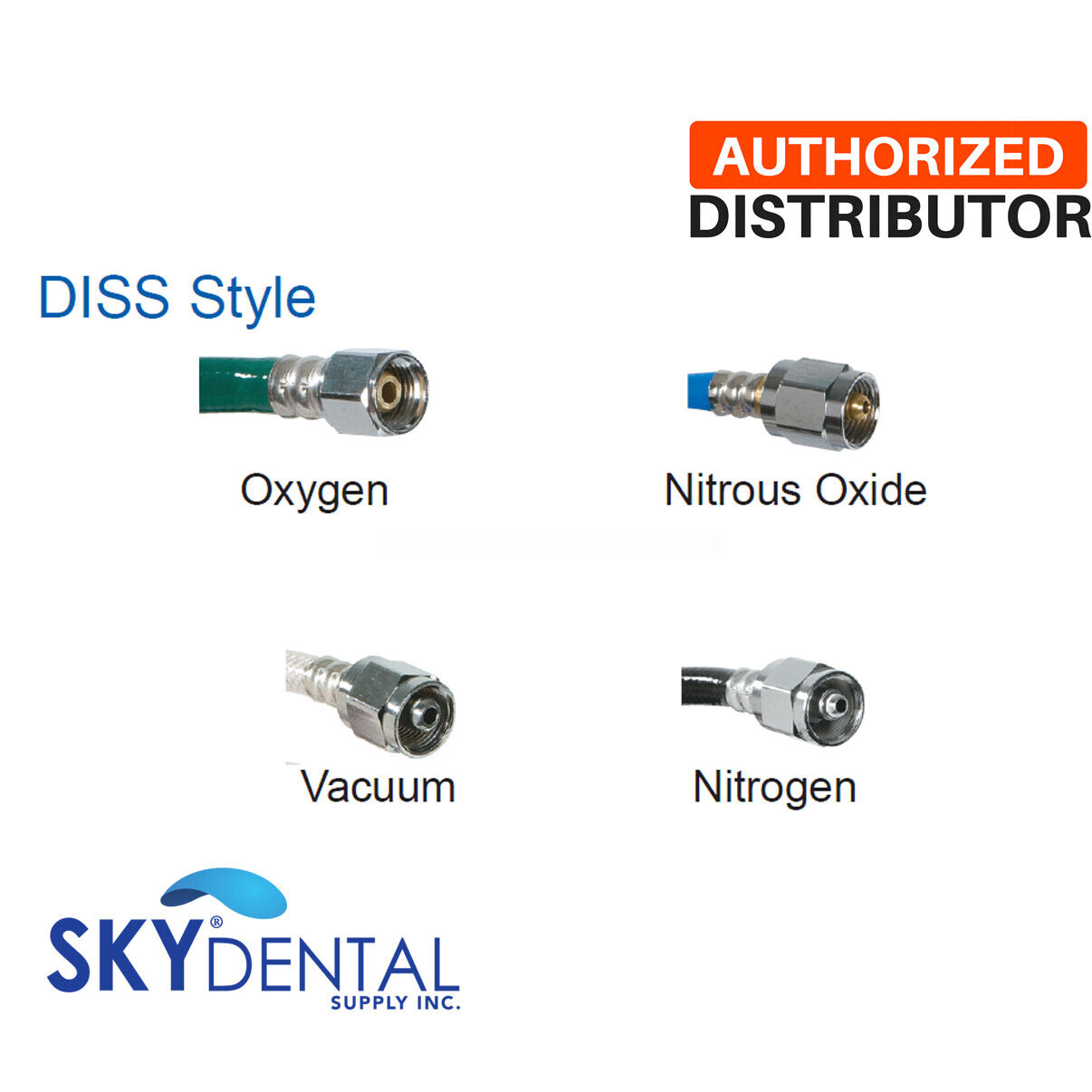

Medical gas connections are keyed so each gas can only connect to matching equipment. Small cylinders use the pin-index safety system, in which the yoke pin pattern matches only the correct gas valve. Larger connections and manifolds use the diameter-index safety system (DISS), in which each gas has a unique threaded fitting. Outlets and quick-connects are similarly keyed by gas, which prevents cross-connection during service.
Gas outlets, manifolds and regulators are installed as part of an operatory gas system and then generate recurring service demand for regulators, flowmeters, fittings and hoses over the life of the installation. Sourcing the gas components and their service parts through one distributor keeps a facility's gas supply on consistent terms. Order at the best Wholesale Prices with MAP Medical.
Frequently Asked Questions
What is the difference between pin-index and DISS gas connections?
The pin-index safety system is used on small gas cylinders, where a pattern of pins on the yoke matches only the correct gas valve so the wrong gas cannot connect. The diameter-index safety system (DISS) is used on regulators, flowmeters and manifold connections, where each gas has a unique threaded fitting. Both keying systems are stocked so components match the gas service in use.
What is the function of a changeover manifold?
A changeover manifold connects two or more cylinders of the same gas and automatically switches from the depleting bank to the reserve bank, keeping supply continuous while empty cylinders are replaced. Manifolds are stocked in manual and automatic changeover formats and for oxygen and nitrous oxide service. They install between the cylinders and the operatory line.
What gas components are stocked for service versus new installs?
New operatory installs draw outlets, manifolds, regulators and flowmeters as project items. Ongoing service draws regulators, flowmeter units, DISS and pin-index fittings, hoses, washers and cylinder wrenches as replacement parts. Both are stocked, keyed to oxygen and nitrous oxide service.
Can facilities order gas outlets and regulators in bulk or by project?
Yes. Medical gas components are quoted by project for new and renovated operatories, and regulators, flowmeters, fittings and hoses are stocked in case and bulk quantities for practices, group practices, dental service organizations and licensed distributors. Standing order programs are available for the highest-velocity SKUs. Contact our procurement team for tiered case pricing and standing order setup.
What gas supply items should be in a facility formulary?
A core gas supply formulary typically covers spare oxygen and nitrous regulators, flowmeters, DISS and pin-index fittings and washers, gas hoses, a cylinder wrench and outlet service kits matched to the installed system. MAP Medical builds consolidated gas component packages matched to installed manifold and outlet brand - contact our team for an assessment.
